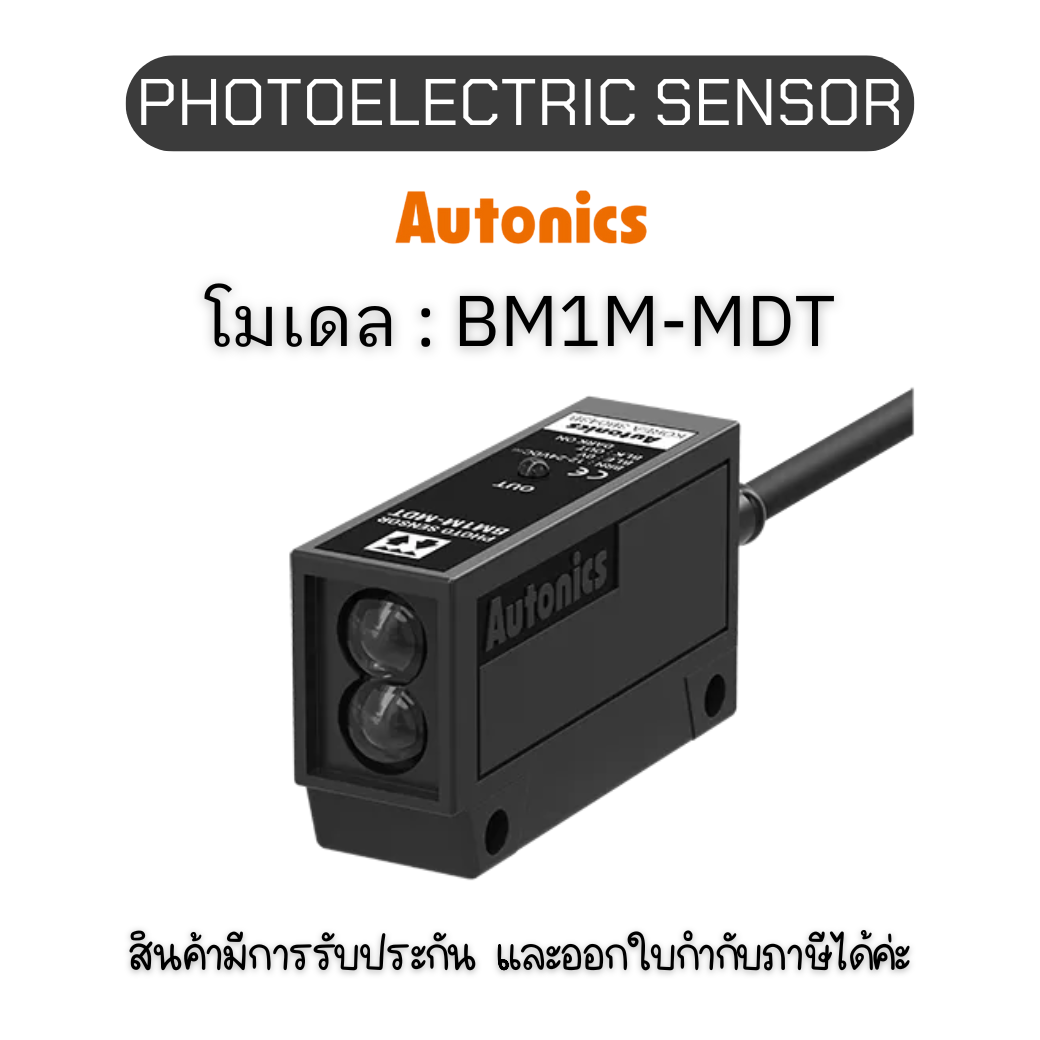

BM1M-MDT, PHOTOELECTRIC SENSOR DC12-24V, MIDDLE Autonics

BM1M-MDT, PHOTOELECTRIC SENSOR DC12-24V, MIDDLE Autonics

฿1,068.00

BM1M-MDT

  • Sensing type : Retroreflective type
  • Sensing distance : 1m(MS-2)
  • Sensing target : Opaque material of min. Ø60mm
  • Light source : Infrared LED(940nm)
  • Response time : Max. 3ms
  • Power supply : 12-24VDC  ±10%(ripple P-P: max. 10%)
  • Operation mode : Dark ON
  • Control output : NPN open collector



ขอใบเสนอราคา / ออกใบกำกับภาษีแอดไลน์ @okfaifa

E-mail : okfaifa@gmail.com

#okfaifa #อุปกรณ์ไฟฟ้าโรงงาน
#พาร์ทออโตเมชั่น
#นำเข้าจากประเทศเกาหลีของแท้100%
#สินค้าคุณภาพได้รับมาตรฐาน
#สต็อกสินค้าจำนวนมาก
#Autonics #LS #Kacon
#KG #keymax

2 in stock

SKU: A1650000077 Categories: ,

Description

Sensing type Retroreflective type
Sensing distance 1m(MS-2)
Sensing target Opaque material of min. Ø60mm
Light source Infrared LED(940nm)
Response time Max. 3ms
Power supply 12-24VDC  ±10%(ripple P-P: max. 10%)
Current consumption Max. 40mA
Sensitivity adjustment Fixed
Operation mode Dark ON
Control output NPN open collector
Connection type Cable type(Ø4, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual Reflector(MS-2)
Accessories_Common Fixing bracket, Bolts, Nuts
Weight Approx. 105g

Additional information

Brand

Autonics
